# Outline 1. Introduction - 20 minutes 2. Coding Dojo - 60 minutes 3. Conclusion - 10 minutes

# Introduction

📦

Container-native development

Develop, build, test & deploy on the same container

Push ready-to-run Docker images to a registry
instead of
pushing code to a code repository

🤓

containerizing applications means
developers take responsibility

🍻

inviting edx-configuration and devstack inside edx-platform

# Meet Arnold

🐙 [github.com/openfun/arnold](https://www.github.com/openfun/arnold) - Packaged as a Docker image - Ansible with [openshift_raw](https://docs.ansible.com/ansible/2.5/modules/openshift_raw_module.html) - [OC](https://docs.openshift.org/latest/cli_reference/index.html) (OpenShift CLI client) Note: container can be used directly in CI

🐳 Docker images

github.com/openfun/fun-platform	Native Docker image of edxapp
github.com/openfun/openshift-docker	Docker images adapted to OpenShift for related services (nginx, elasticsearch, etc.)
github.com/openfun/richie	Native Docker image of Richie, a CMS for Open edX based on DjangoCMS

Built on CircleCI and pushed to Docker Hub

# 🍱 Configuration management - Multi-customer, multi-environment - Built on Ansible - Flexible defaults / overrides - Make extensive use of variable precedence - Credentials are encrypted with Ansible vault and pushed to OpenShift secrets

# 🏭 Generate OpenShift objects Using Jinja templates and Ansible playbook tasks: - Routes - Services (SVC) - Deployment Configurations (DC) - Endpoints (EP) - Jobs (e.g. collectstatic, migrate,...) - Volumes (PVC) 💾 - Configmaps 📁 - Secrets 🙈

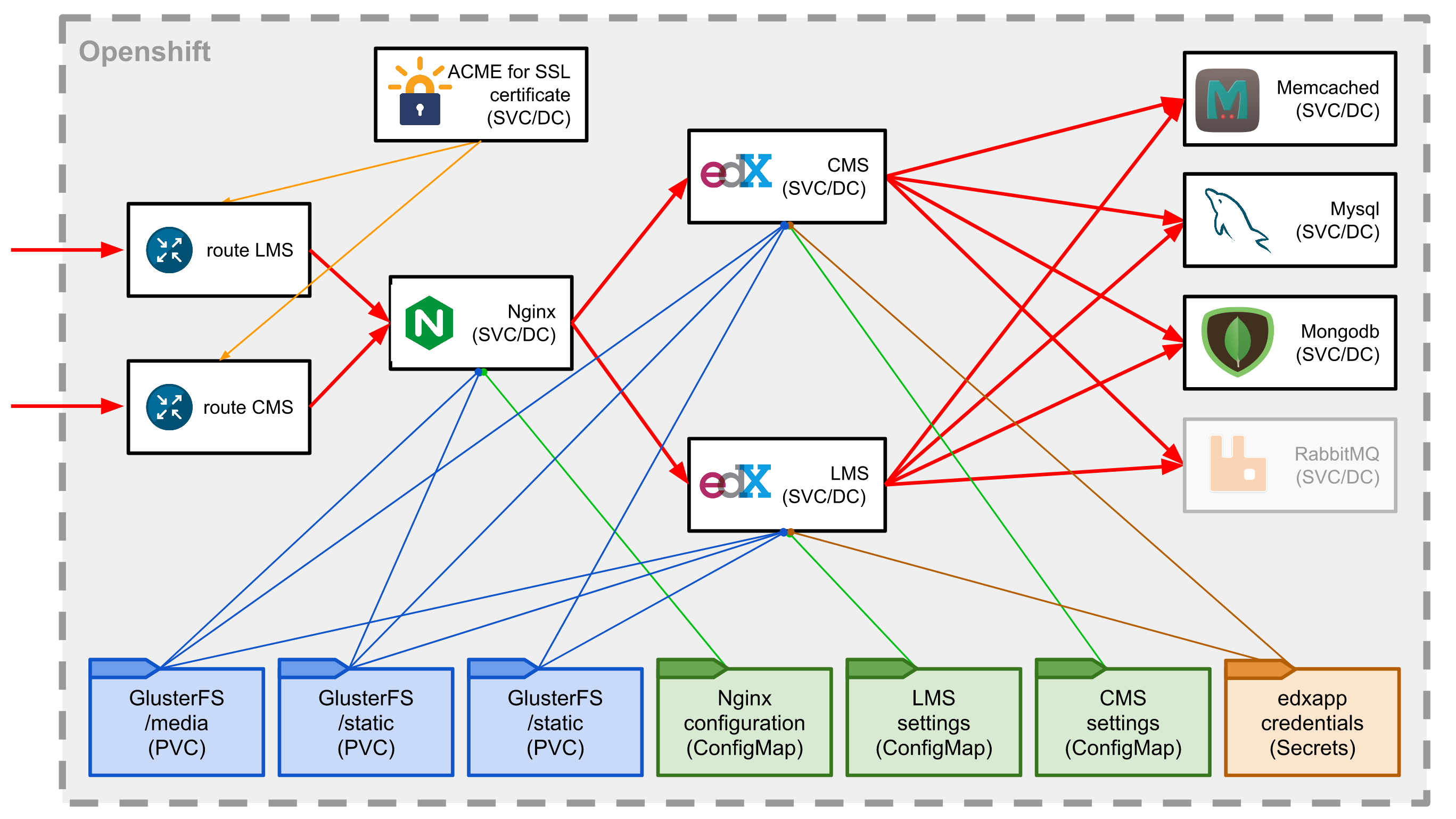

![architecture development](img/architecture_development.png)

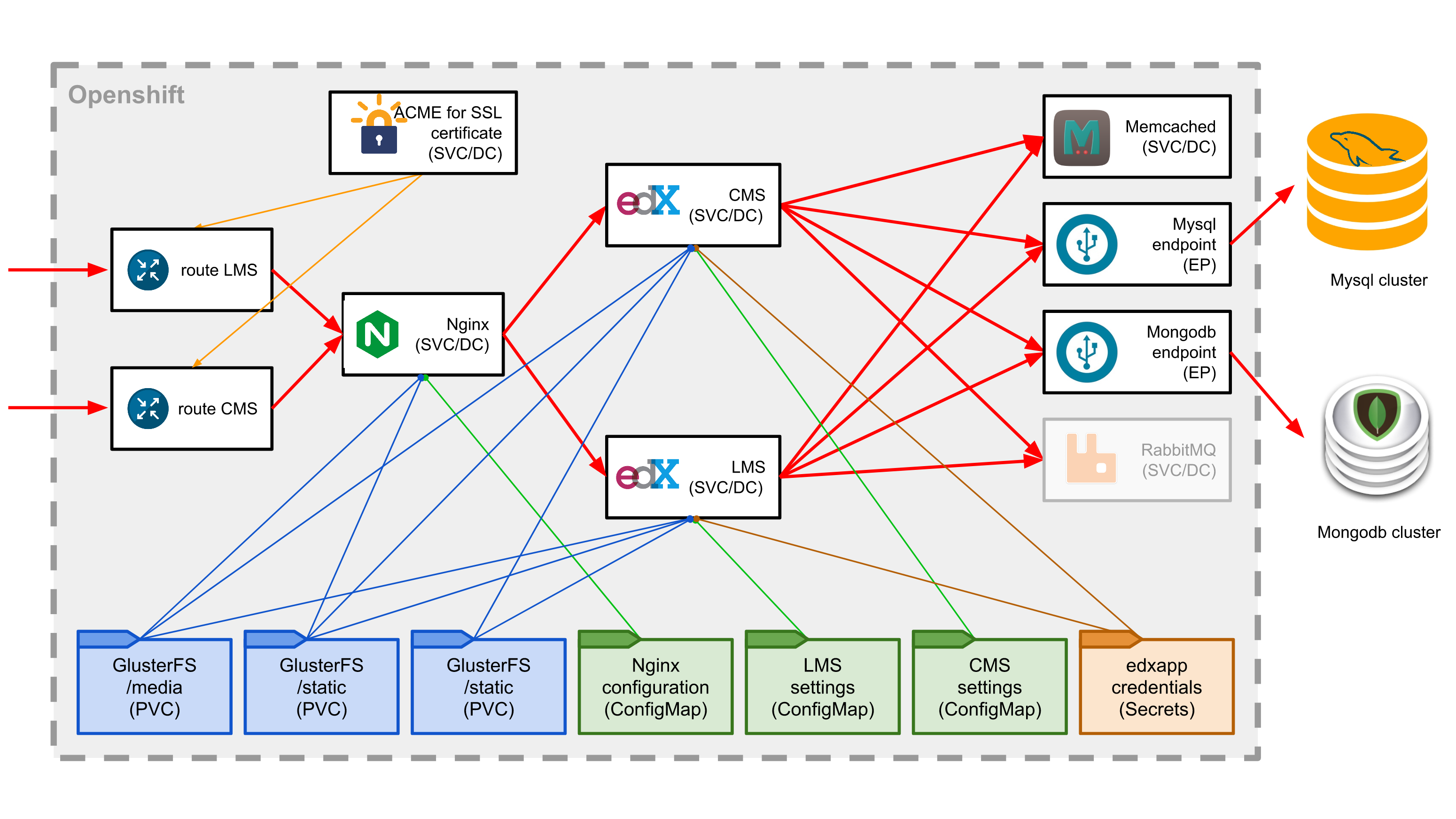

![architecture](img/architecture.png)

# Blue/Green deployments ![blue green](img/blue_green.png) Note: for each deployment, we create unique objects with a stamp The stamp is datetime + random hash (short uuid)

🔒 SSL certificates

SSL certificates with Let's Encrypt
ACME protocol (Automated Certificate Management Environment)
using https://github.com/tnozicka/openshift-acme

Environments

Environment	Orchestrator	Databases	Routes
Development	Local MiniShift	Container	https://development-example-lms.192.168.99.100.nip.io https://development-example-cms.192.168.99.100.nip.io
Feature	OpenShift dev	Container	https://feature-example-lms--feature-description.dev.openfun.fr https://feature-example-cms--feature-description.dev.openfun.fr
Staging	OpenShift dev	Cluster dev	https://staging-example-lms.dev.openfun.fr https://staging-example-cms.dev.openfun.fr
PreProduction	OpenShift dev	Cluster dev	https://preproduction-example-lms.dev.openfun.fr https://preproduction-example-cms.dev.openfun.fr
Production	OpenShift prod	Cluster prod	https://www.example.com https://studio.example.com

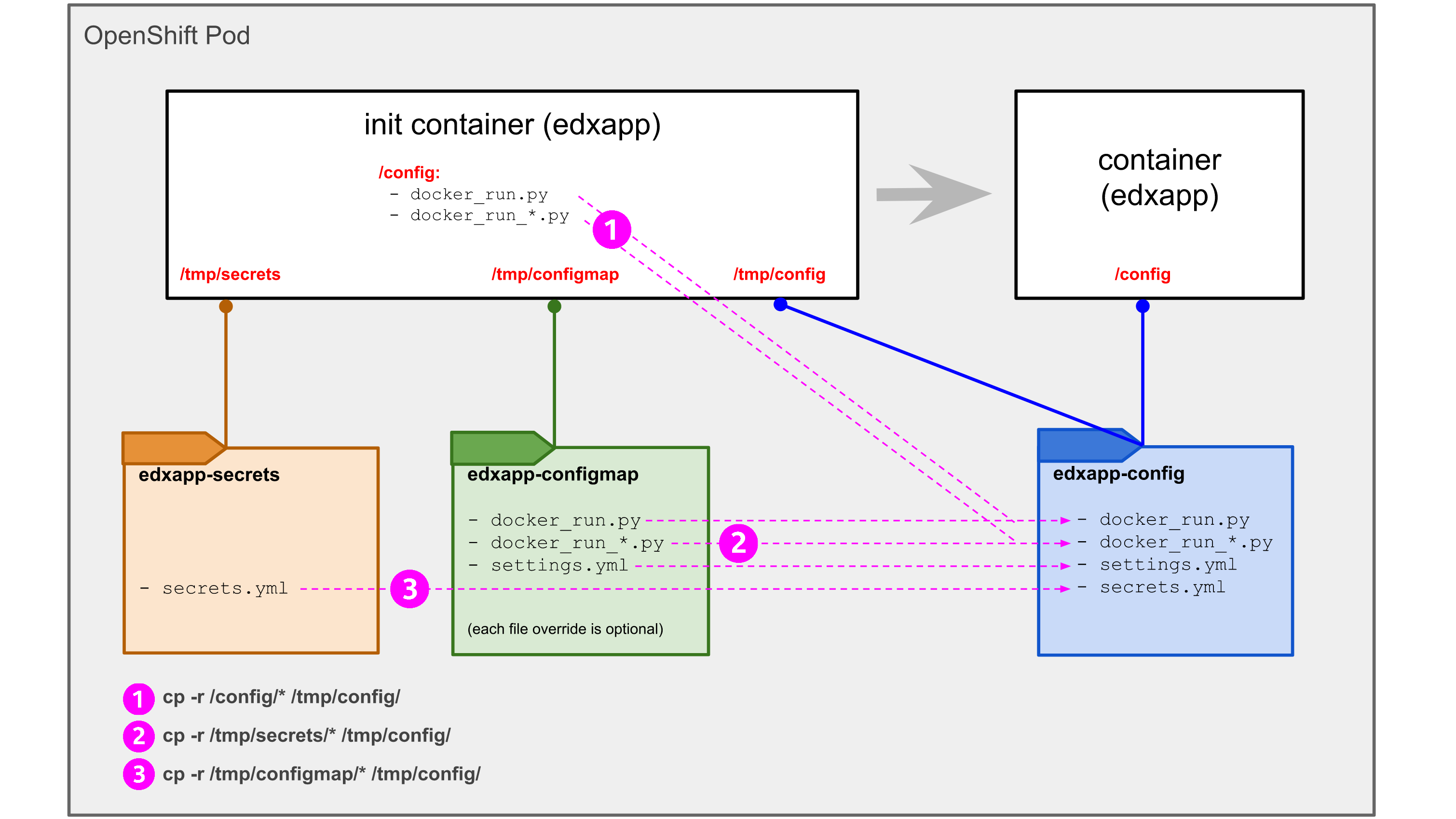

![init container](img/init_container.png) Note: The CI does not have access to our secrets

# Coding Dojo - All skill levels are welcome - Teams of 3 to 4 persons - At least 1 person who knows Docker per team - At least 1 person who knows Ansible per team - Call us when you need help

``` git clone git@github.com:openfun/arnold.git git checkout openedx-con ``` and follow the readme...

# Conclusion

# 🚧 Todo list - current routes and blue/green switch - load SQL dump for development/feature envs - refactor settings override mechanism - github issues...
